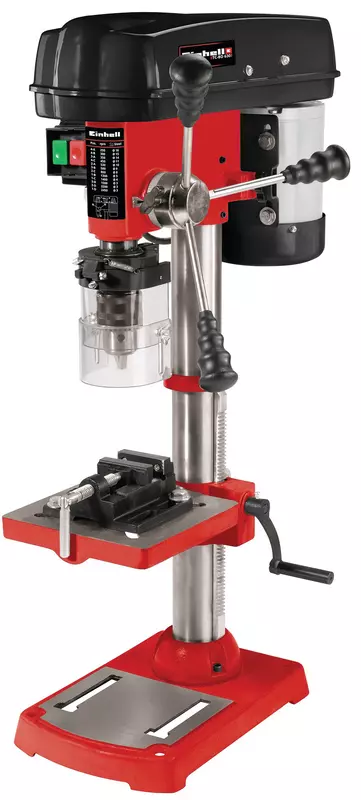

Bench Drill
TC-BD 630; EX; PE; 220V
Item no.:4250596EAN: 4006825642056
Bench Drill

TC-BD 630; EX; PE; 220V

Item no.: 4250596 EAN: 4006825642056
  • The right speed for every material thanks to 12 graduations
  • Robust 1-16 mm ring gear chuck for all standard drill bit sizes
  • MK2 chuck for morse taper bits and therefore greater flexibility
  • Easy to adjust depth stop for exact drill holes also in series
  • Variable thanks to height-adjustable, tiltable and rotable table
  • Drilling spindle with ball bearings for long-lasting and easy use
  • Rubberized handles on the capstan for precise dosing of the power
  • The foldable chip guard protects the user
  • ON/OFF switch with zero-voltage release for safety
  • Supplied complete with vise for clamping the workpiece
See more information
Article description

The Einhell TC-BD 630 pillar drill allows the desired holes to be made precisely and accurately in workpieces made of metal or wood. Thanks to its 12 speed levels, the TC-BC 630 pillar drill works at the appropriate speed for every material. The robust ring gear chuck from 1.5 to 16 millimeters is suitable for all standard drill bit sizes. The MK2 chuck also holds morse taper bits, offering even more flexibility. The easily adjustable depth stop enables fast, precise drilling even in series production. With a height-adjustable drill table with tilt and swivel functions, the pillar drill can be used for a wide variety of applications. The drilling spindle with ball bearings is designed for easy, long-lasting use. The capstan has rubberized handles for precise power dosing and a pleasant feel. The folding chip guard of the ON/OFF switch with zero-voltage release keeps the user safe. The package includes a vise for clamping the workpiece.

Technical details

Mains supply220 V | 60 Hz
Max. power (S2 | S2time)630 W | 15 min
Spindle speed250 min^-1 - 2450 min^-1
Number of speed steps12 settings
Drill table tiltable45 ° - 45 °
Drill chuck mountB16
Drill diameter1.5 mm - 16 mm
Throat126 mm
Max. drilling depth60 mm
