Bench Drill

TE-BD 750 E; EX; BR; 220V

Item no.: 4250718 EAN: 4006825642049
  • Infinitely adjustable speed control, adjustment without tools

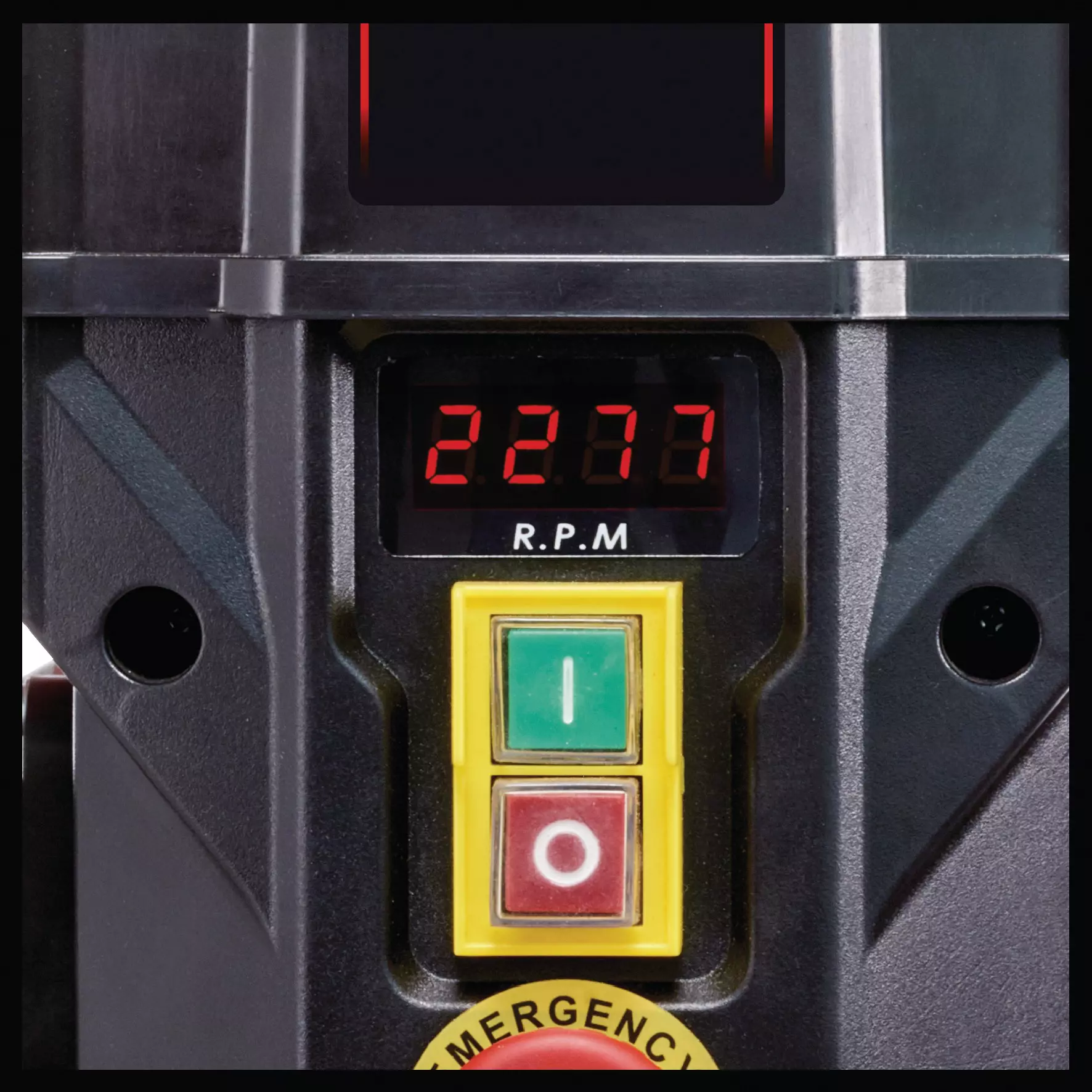

  • LCD display for showing the current speed

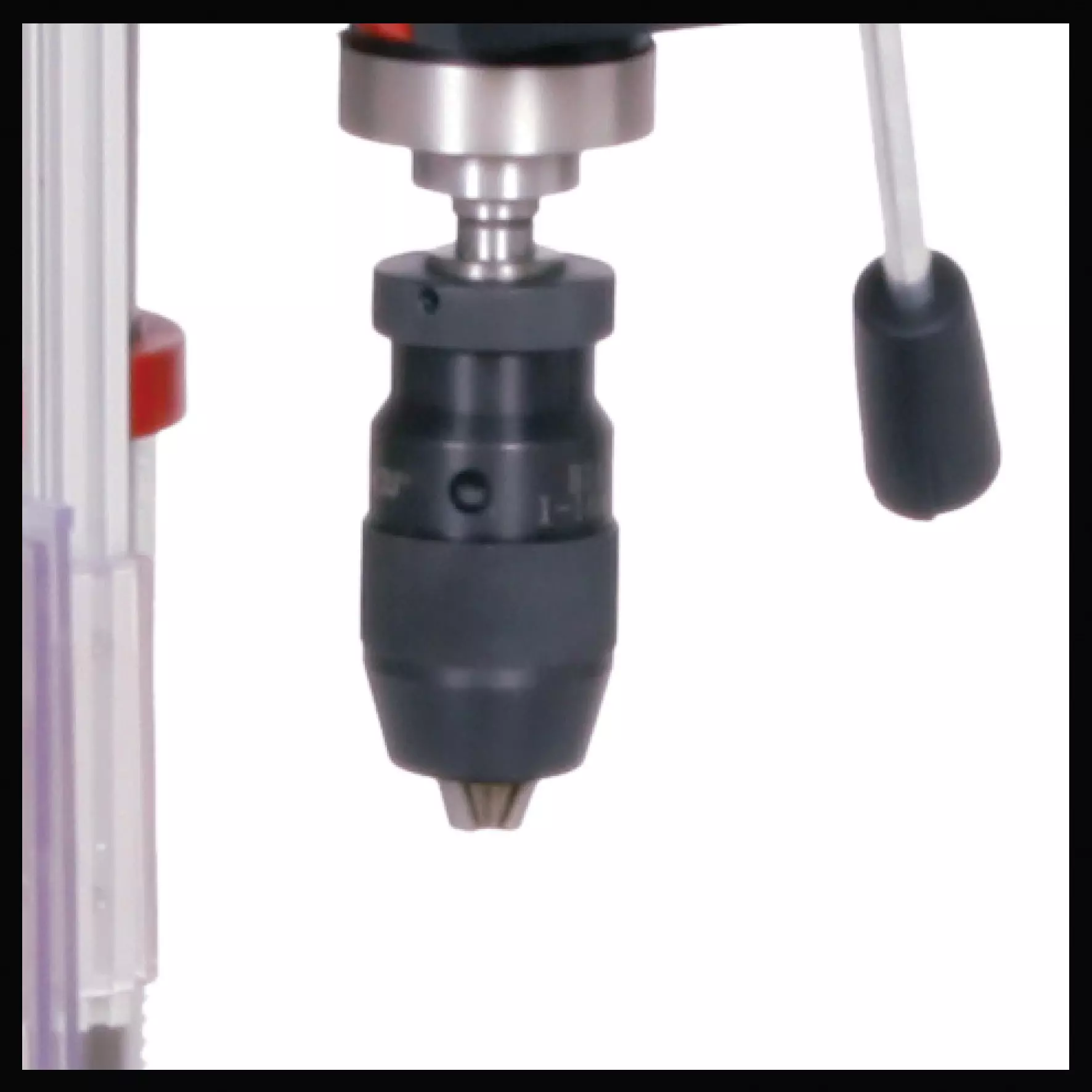

  • 1-16 mm quick-action chuck for all standard drill bit sizes
  • MK2 chuck for morse taper bits

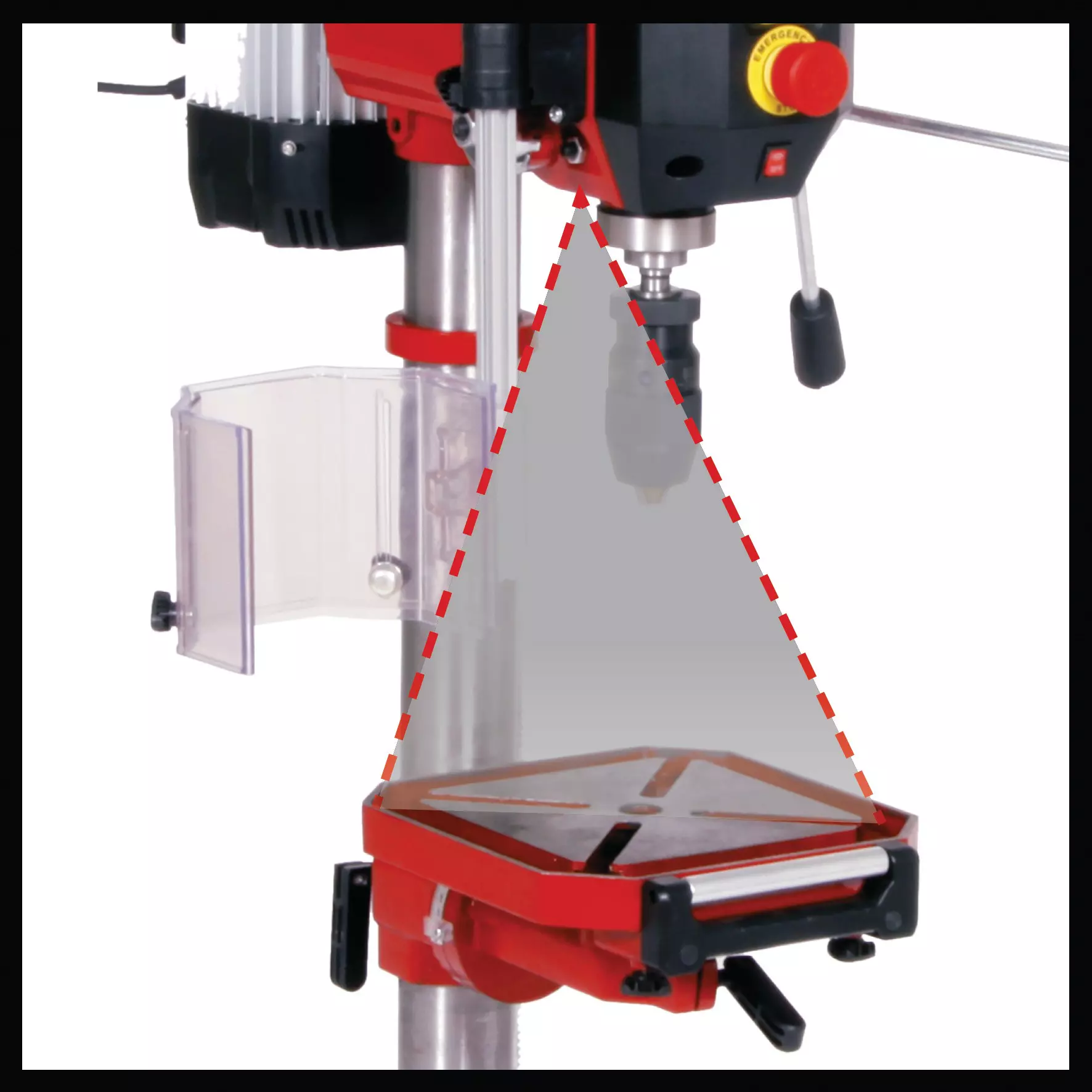

  • LED light for illuminating the drill table
  • Smooth-running and quiet induction motor

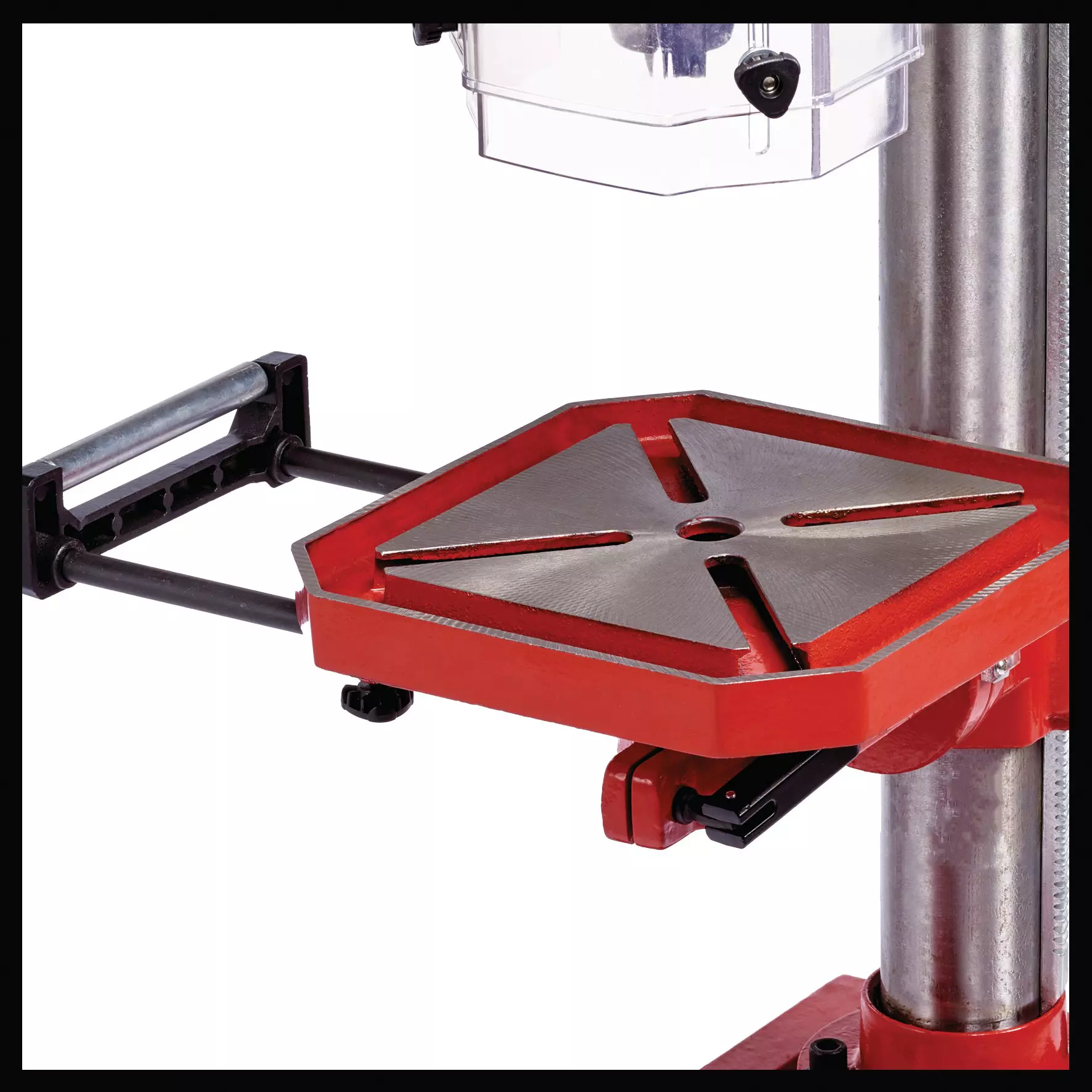

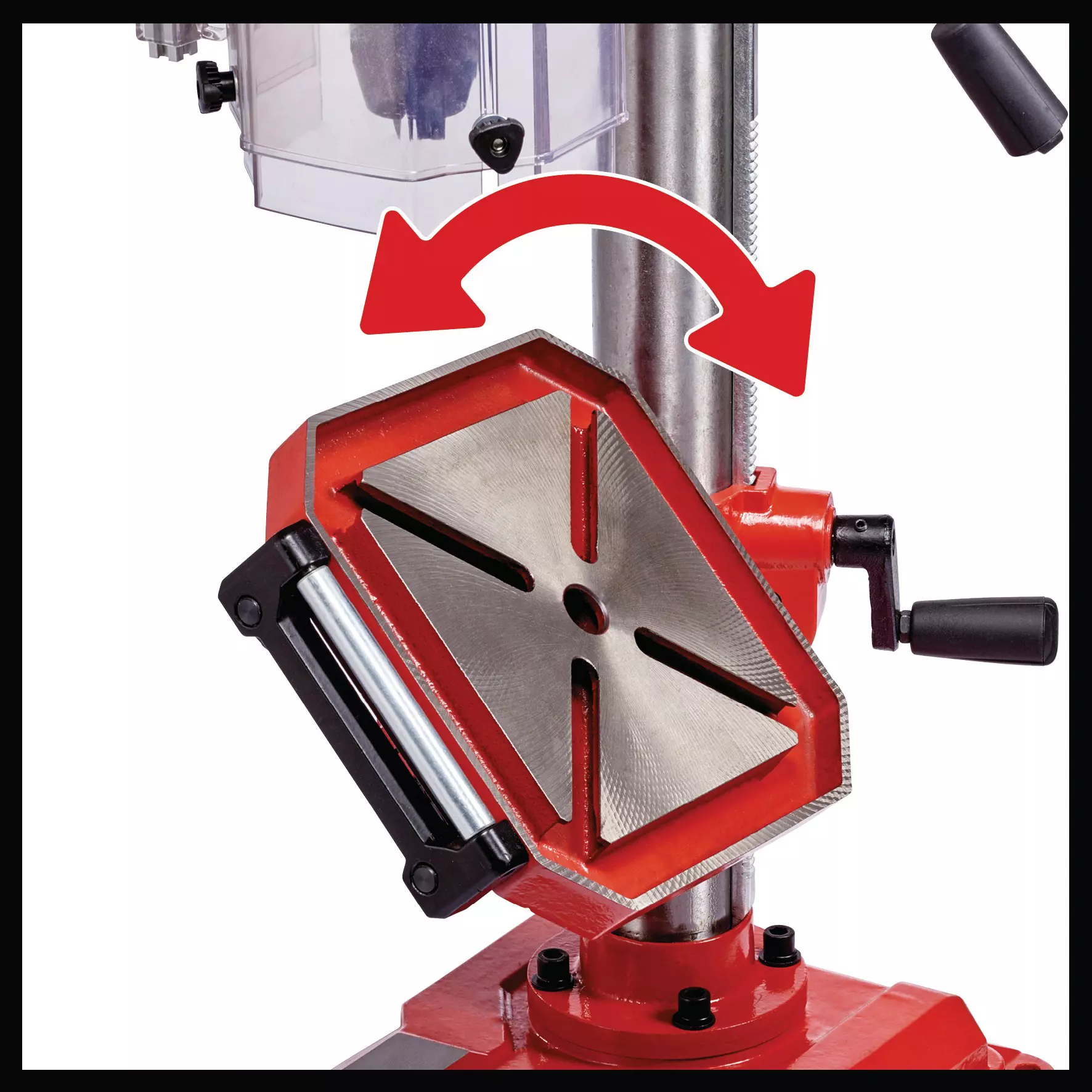

  • Height-adj. drill table with tilt & swivel function & width ext.

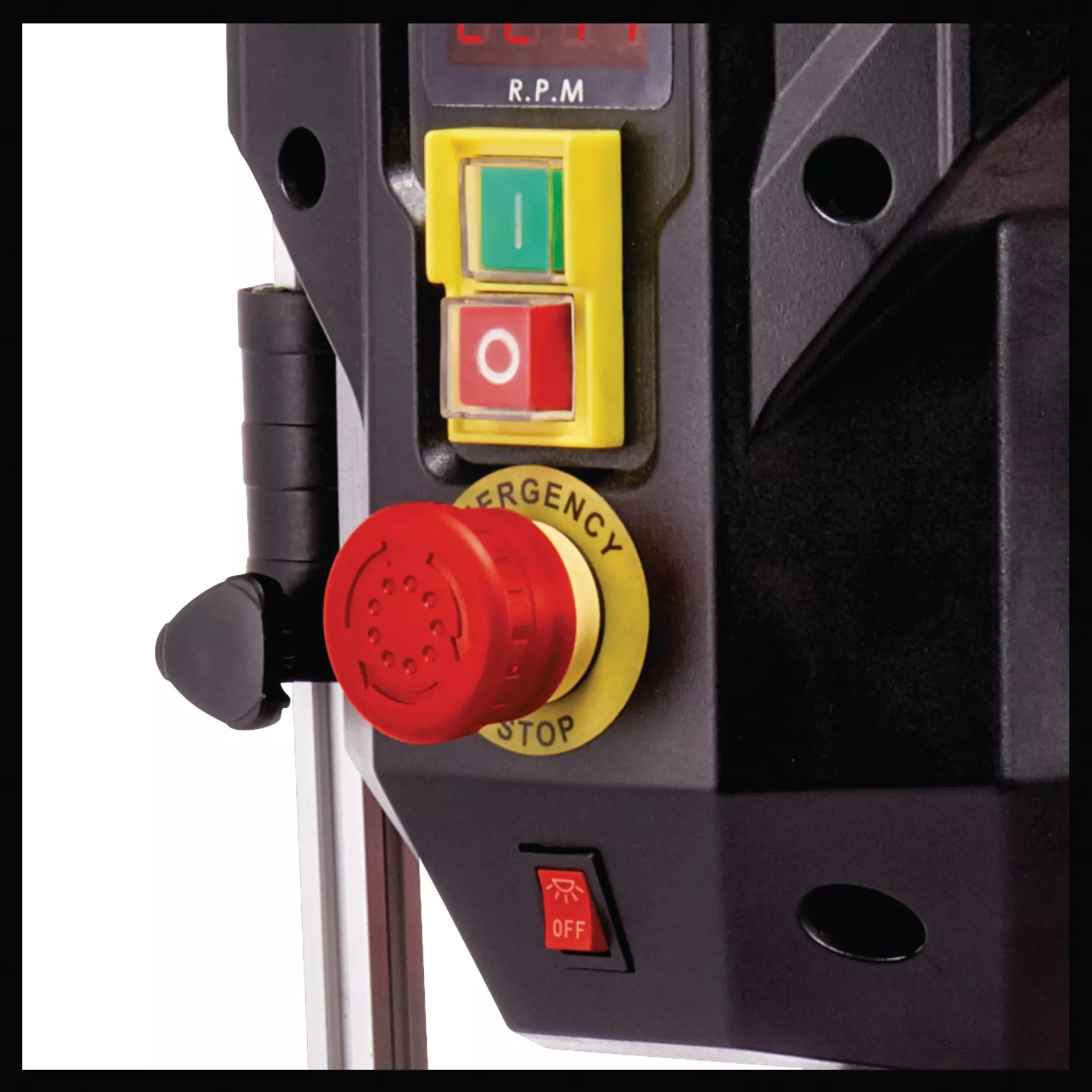

  • Emergency stop switch & safety spindle protection for usersafety

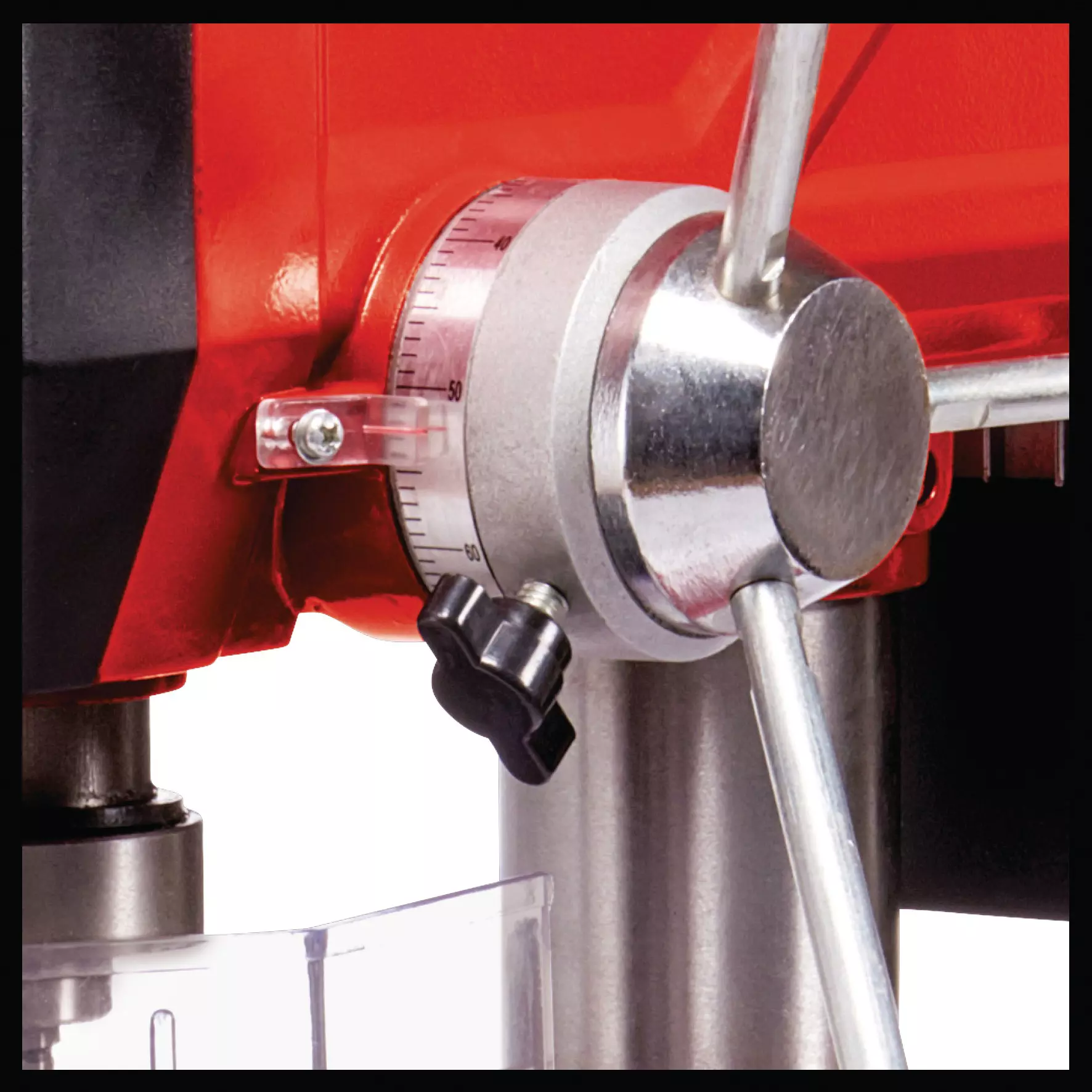

  • Easy adjustable depth stop for precise drillings
  • Drilling spindle with ball bearings for long-lasting use
See more information
Show less information
einhell-expert-bench-drill-4250718-productimage-001
Article description

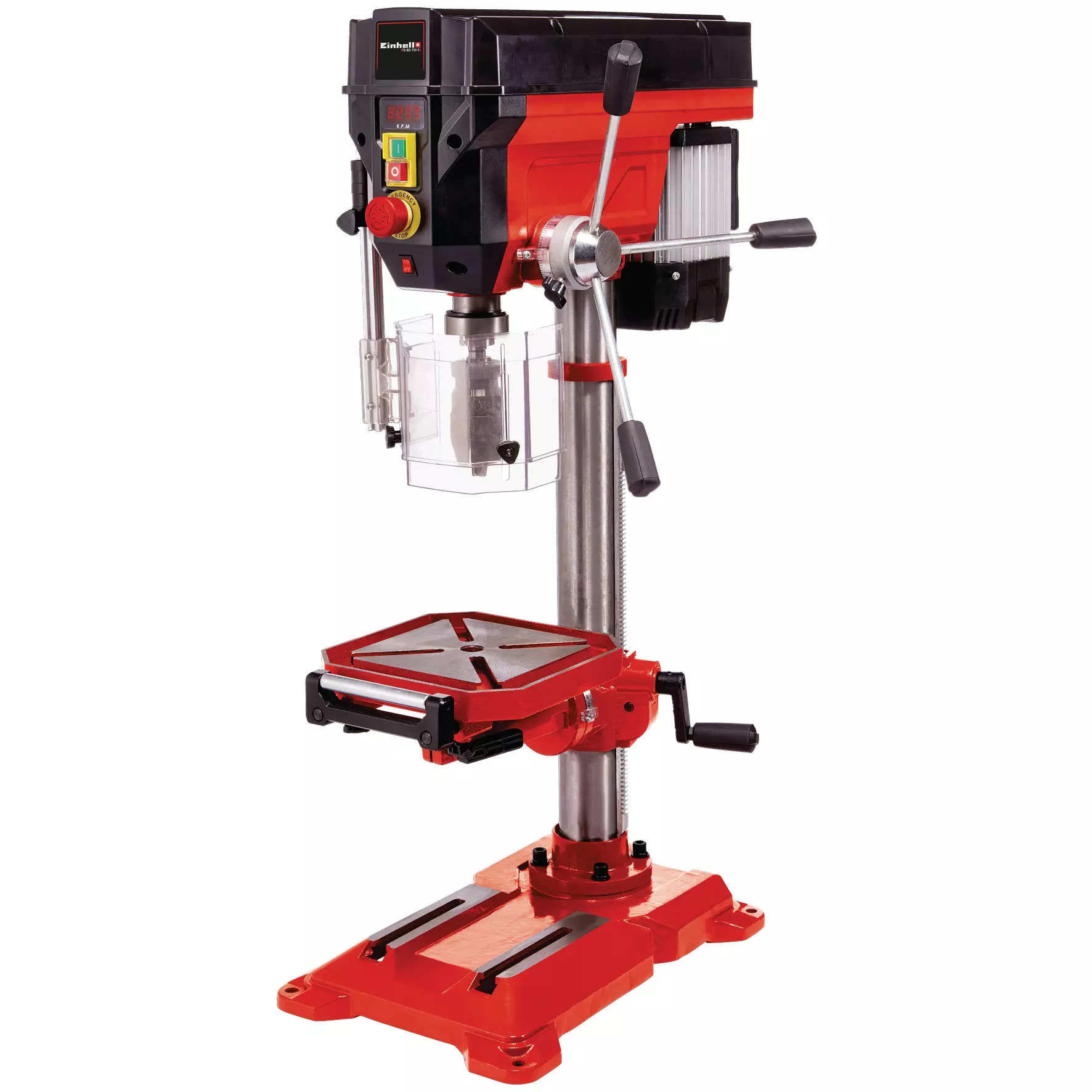

The Einhell TE-BD 750 E pillar drill is a powerful precision tool that no tool kit should be without. It has a maximum output of 750 W for controlling the spindle speed of 450 to 2500 rpm. The speed is infinitely adjustable - and without the need for tools. The current speed is indicated by an LCD display. Comfortable operation is ensured by the smooth-running and quiet induction motor. For fitting all standard sizes of drill bit the quick-action chuck has a range of 1 to 16 millimeters. In addition, the Einhell TE-BD 750 E pillar drill has an MK2 chuck for morse taper bits. Optimum conditions for all desired drilling operations are ensured by the height-adjustable drill table with tilt and swivel function, which also has width extension elements. An LED light illuminates the drill table to optimum effect. The drilling spindle with ball bearings ensures long-lasting use. Additional safety is provided by the emergency stop switch and the safety spindle protection. The reach is 152 millimeters and the maximum drill depth 80 millimeters.

Technical details

Mains supply220 V | 60 Hz
Max. power (S2 | S2time)750 W | 15 min
Spindle speed540 min^-1 - 3000 min^-1
Number of speed stepsContinuously
Drill table tiltable45 ° - 45 °
Drill chuck mountB16
Drill diameter1 mm - 16 mm
Throat152 mm
Max. drilling depth80 mm
